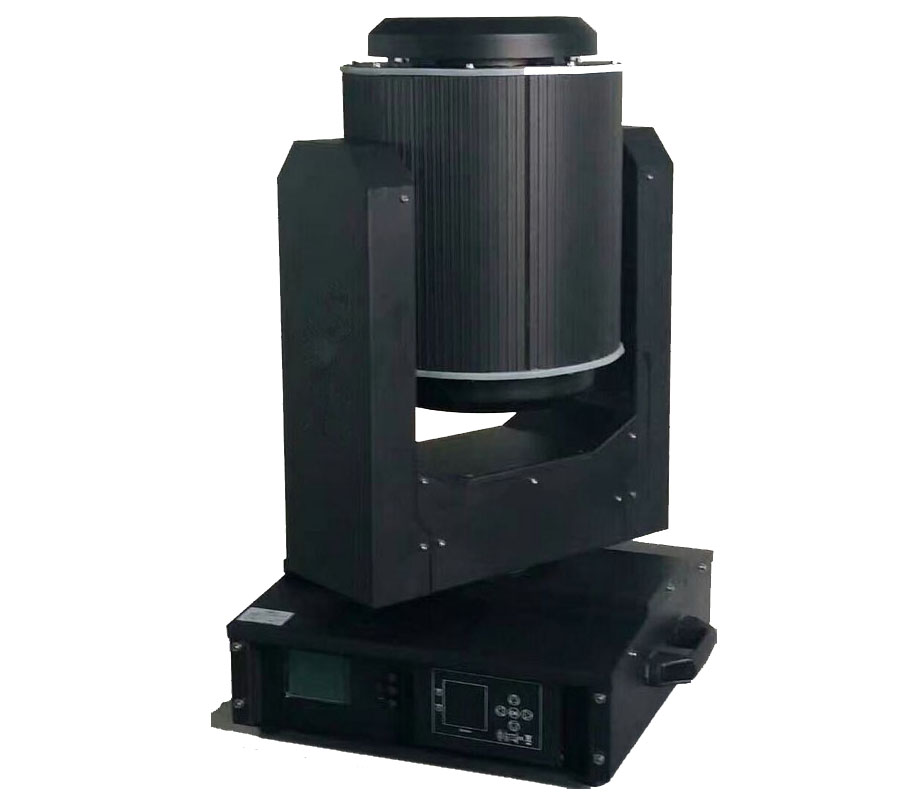

350W Waterproof Moving Head Light
Outdoor waterproof,water beam light
350W outdoor waterproof moving head light
Model: SC-350A
Technical Parameters
Light source system: excellent light 17R 350W high brightness platinum bulb
Light source life: 1500-2000 hours
Color system: the use of high temperature imported color film, 14 colors + white, can be half-color, transformable rainbow effect
Pattern system: 17 kinds of fixed pattern + white light
Detail Info
350W outdoor waterproof moving head light
Model: SC-350A
Technical Parameters
Light source system: excellent light 17R 350W high brightness platinum bulb
Light source life: 1500-2000 hours
Color system: the use of high temperature imported color film, 14 colors + white, can be half-color, transformable rainbow effect
Pattern system: 17 kinds of fixed pattern + white light
Focusing system: double plus stepper motor, electronic focus
Atomization system: high temperature atomization film, you can make this section of the lamp with dyeing effect
Bubble function: remote DMX controller control bubble, foam, and can be set at the same time set the brightness of the board
Linear dimming curve: 0% -100% linear dimming
Light column: can be small or small.
Prism system: 16 prism, can be rotated, macro function, can be out of 16 light beam
Display: LCD liquid crystal display
Horizontal / vertical: horizontal, vertical use of custom three-phase motor, the level can be done 540 ° rotation, vertical to do 210 ° rotation, fast and smooth,
Fixtures set the intelligent photoelectric reset correction system, accidentally malfunction, but also automatically return to the original location.
cooling system:
Using CFD software to calculate and calculate the heat flux of the lamp, the design of low noise cooling system, the lamp part, using a imported thickening vortex fan,
Direct light bulb cooling, using a imported 8 * 8 DC fan, heat bulb system, the overall lamp with an imported 12 * 12 DC fan, the internal cooling of the lamp.
Temperature is measured at 40 ° C ambient temperature (lamp temperature requirement ≤ 380 °, actual temperature ≤ 300 °). The base uses two 6 * 6 inlet DC fans, direct blowing power and light bulbs.
Power module design
Using Chinas well-known brands of power, and import matching lights, lighting machine power supply system more stable, more smooth operation.
Channel DMX: 16 channels and 20 channels, can be set in the channel mode channel, the factory standard set 16 channel
Built-in procedures: built-in a variety of effects program, you can achieve a single beam of white left and right slow to achieve a single change the color around the slow pendulum and multi-beam discoloration left and right slow
Waterproof rating: IP 55
Size: 650 × 590 × 920mm (length × width × height, lamp vertical up carton)
Net weight: 35kg
Model: SC-350A
Technical Parameters
Light source system: excellent light 17R 350W high brightness platinum bulb
Light source life: 1500-2000 hours
Color system: the use of high temperature imported color film, 14 colors + white, can be half-color, transformable rainbow effect
Pattern system: 17 kinds of fixed pattern + white light
Focusing system: double plus stepper motor, electronic focus
Atomization system: high temperature atomization film, you can make this section of the lamp with dyeing effect
Bubble function: remote DMX controller control bubble, foam, and can be set at the same time set the brightness of the board
Linear dimming curve: 0% -100% linear dimming
Light column: can be small or small.
Prism system: 16 prism, can be rotated, macro function, can be out of 16 light beam
Display: LCD liquid crystal display
Horizontal / vertical: horizontal, vertical use of custom three-phase motor, the level can be done 540 ° rotation, vertical to do 210 ° rotation, fast and smooth,
Fixtures set the intelligent photoelectric reset correction system, accidentally malfunction, but also automatically return to the original location.
cooling system:
Using CFD software to calculate and calculate the heat flux of the lamp, the design of low noise cooling system, the lamp part, using a imported thickening vortex fan,
Direct light bulb cooling, using a imported 8 * 8 DC fan, heat bulb system, the overall lamp with an imported 12 * 12 DC fan, the internal cooling of the lamp.
Temperature is measured at 40 ° C ambient temperature (lamp temperature requirement ≤ 380 °, actual temperature ≤ 300 °). The base uses two 6 * 6 inlet DC fans, direct blowing power and light bulbs.
Power module design
Using Chinas well-known brands of power, and import matching lights, lighting machine power supply system more stable, more smooth operation.
Channel DMX: 16 channels and 20 channels, can be set in the channel mode channel, the factory standard set 16 channel
Built-in procedures: built-in a variety of effects program, you can achieve a single beam of white left and right slow to achieve a single change the color around the slow pendulum and multi-beam discoloration left and right slow
Waterproof rating: IP 55
Size: 650 × 590 × 920mm (length × width × height, lamp vertical up carton)
Net weight: 35kg
